Hp agilent 6625A precision system power supply 2 output

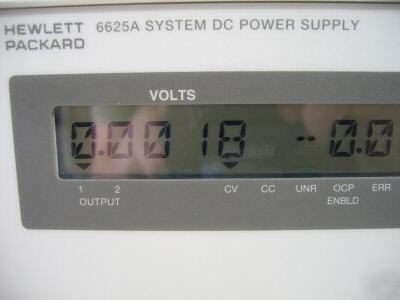

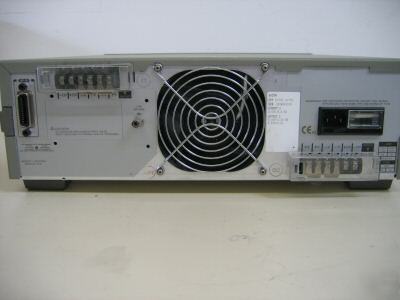

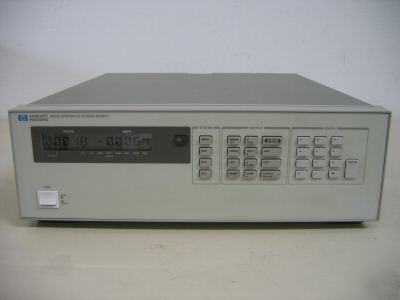

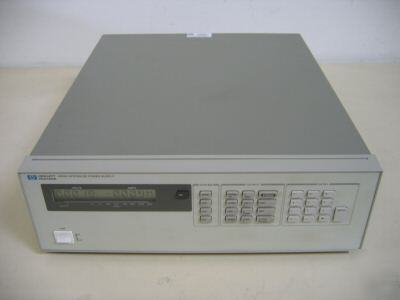

HP Agilent 6625A Precision System Power Supply, 2 Output, 25W or 50W
* Description: The Agilent 6625A high performance DC Power Supply offers spec and accuracy for test optimization. The precision multiple output, 25W - 50W GPIB 6625A, provides fast, low-noise outputs; dual-range, precision low current measurement; built-in measurements and advanced programmable features; and protection features to ensure DUT safety. The Agilent 50W, dual-output 6625A is a versatile solution that helps improve system accuracy and reduces test time in a 3U high package Features and specifications of the HP Agilent 6625A include:
Output Ratings (1 output each)
* Low-range volts, amps 25W: 0 to 7 V, 0 to 15 mA
* Low-range volts, amps 50W: 0 to 16 V, 0 to 200 mA
* High range volts, amps 25W: 0 to 50 V, 0 to 500 mA 0
* High range volts, amps 50W: 0 to 50 V, 0 to 1 A or, 0 to 16 V, 0 to 2 A
Programming Accuracy (1 output each)
* Voltage 25W: 1.5 mV + 0.016% (low), 10 mV + 0.016% (high)
* Voltage 50W: 53 mV + 0.016% (low), 10 mV + 0.016% (high)
* Current 25W: 15 µA + 0.04% (low), 100 µA + 0.04% (high)
* Current 50W: 185 µA + 0.04% (low), 500 µA + 0.04% (high)
Ripple & Noise (1 output each)
* Constant voltage rms: 500 µV
* Constant current rms: 1 mA
Readback Accuracy (1 output each)
* Voltage 25W: 0.016% + 2 mV (low), 0.016% + 10 mV (high)
* Voltage 50W: 0.016% + 3.5 mV (low), 0.016% + 10 mV (high)
* +/-Current 25W: 0.03% + 15 µA (low), 0.03% + 130 µA (high)
* +/-Current 50W: 0.04% + 250 µA (low), 0.04% + 550 µA (high)
* Cosmetic Condition: Very Good
* Working Condition: Tested Good
* Other Comments / Notes: None
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
