American stabilis remote temperature controls 2 H1

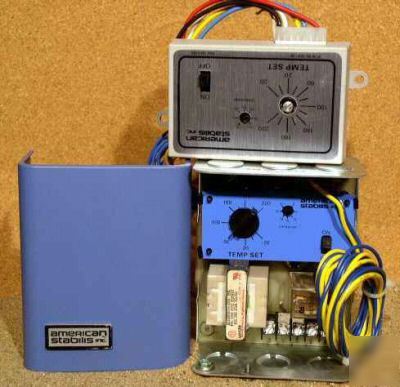

1 SET OF 2 PCS COMPRISING A SYSTEM
AMERICAN STABILIS REMOTE TEMPERATURE CONTROLS
THE RTC SERIES OF REMOTE CONTROLS INCORPORATE A SOLID STATE SENSOR, FOR APPLICATIONS REQUIRING ACCURATE TEMPERATURE CONTROL OF AIR AND LIQUIDS.
THE EXTENDED TEMPERATURE RANGE MAKES THE RTC CONTROLLERS THE RIGHT CONTROL FOR ALL APPLICATIONS. THE RTC CONTROLLERS ARE ADJUSTABLE FROM -20 F TO +220F. THE DIFFERENTIAL IS ADJUSTABLE FROM 2 TO 32 DEGREES F.
THE SOLID STATE SENSORS NOT ONLY ENSURE ACCURACY, BUT ALLOW FOR EASY INSTALLATION. THE SENSOR CAN BE EXTENDED UP TO 1000' FROM THE CONTROLLER, USING 18/2 THERMOSTAT WIRE, WITHOUT LOSS OF ACCURACY. PLUS THERE IS NO CUMBERSOME CAPILLARY TUBE.
MODEL RTC-24-1 24 VOLT SWITCH IS DESIGNED TOMAKE ON TEMPERATURE FALL AND BREAK ON TEMPERATURE RISE. ( EXAMPLE: IF SET AT 42 DEGREES WITH A DIFFERENTIAL OF 10 DEGREES, THE RTC-24-1 WILL MAKE WHEN THE TEMPERATURE FALLS TO 32 DEGREES AND BREAK AT 42 DEGREES)
MODEL RTC-120-1 CONTROLLER INCORPORATES A TRANSFORMER AND DOUBLE THROW RELAY AND IS DESIGNED TO SWITCH LOW OR LINE VOLTAGE LOADS UP TO 10 AMPS. THE DOUBLE THROW RELAY INCORPORATED INTO THE RTC-120-1 ALLOWS IT TO BE USED FOR BOTH HEATING AND COOLING APPLICATIONS.
INPUT VOLTAGE 120 VOLTS AC 50/60 HZ
MAX OUTPUT CURRENT: 10 AMPS AT 120 VOLTS AC 1/4 HP
SWITCH ACTION: SPDT- WET/DRY CONTACTS
