Tektronix TDS5104/1P/16 oscilloscope, 4 ch, 1 ghz
Tektronix TDS5104/1P/16 4 ch, 1 GHz, 5 GS/s Digital Phosphor Oscilloscope
Manufacturer's description from 2003 Tektronix catalog
* 5 GS/s Maximum Real-time Sample Rate
* 400 k (1 ch) Record Length
* 100,000 wfms/s Maximum Waveform Capture Rate
* Intuitive User Interface for Easy Operation
* OpenChoiceâ„¢ with Windows 2000 Delivers Built-in Networking and Analysis
* 10.4 in. (264 mm) Bright Display
* Suite of Advanced Triggers
* Built-in Printer (included Option)
* CD-RW Drive (included Option)
* Interoperability with Tektronix Logic Analyzers
* Investigation of Transient Phenomena
* Jitter and Timing Analysis
* Automotive Electronics Design and Debug
* Manufacturing Test and Quality Control
* Electro-mechanical Design and Analysis
* Bio-medical Product Development
The TDS5000 Series Digital Phosphor Oscilloscopes Deliver High-performance Features along with a suite of advanced triggers, intuitive user interface, and an open Windows platform, all in a compact bench-top package.
Digital phosphor oscilloscopes provide unmatched insight into signal behavior by displaying, storing and analyzing complex signals in real-time using three dimensions of signal information: amplitude, time and distribution of amplitude over time. The TDS5000 DPO Series delivers fast waveform capture rates, enabled by Tektronix proprietary DPXâ„¢ acquisition technology, saving minutes, hours or even days by quickly revealing the nature of faults so sophisticated trigger modes can be applied to isolate them.
Elusive Glitch. Fast waveform capture rate, enabled by Tektronix proprietary DPX acquisition technology, maximizes the probability of capturing elusive glitches and other infrequent events.
The TDS5000 Series graphical user interface readily adapts to any operating style and environment, making the oscilloscope easy to learn and easy to use. Classic analog-style controls provide instant, front-panel access to the most frequently used functions while the large 10.4 in. (264 mm) display and extensive use of intuitive icons create a highly visual environment with explicit illustration of instrument features. Users can select traditional instrument-style buttons for navigation or switch to a Microsoft Windows menu bar. Waveform positions, cursor locations, and trigger level can be directly changed using a mouse or optional touch screen. A graphical drag-box can be used to select a waveform area for zooming, histogram analysis or measurement gating. The USB interface allows a mouse, keyboard, and other peripherals to be added without powering off the instrument. A context-sensitive help program supplements graphic control windows and encourages users to apply advanced capabilities to solve their problems.
The TDS5000 Series combines a high performance oscilloscope and a PC in a self-contained unit. With DPX acquisition technology, OpenChoice Windows 2000 desktop, and application programming interfaces (API) for Windows and UNIX, this series provides exceptionally fast data acquisition, analysis, and network accessibility. By using the embedded PCI bus, waveform data can be moved directly from acquisition to analysis applications on the Windows desktop at much faster speeds than conventional GPIB transfers.
Integration of the oscilloscope with external PCs and non-Windows hosts is also supported by the TDS5000 Series software solutions. Plug-and-play and IVI drivers are included to enable easy communication with the oscilloscope using GPIB or LAN connections from LabVIEW and LabWindows programs running on external PCs. UNIX applications, and other LAN resources, can connect directly using the VXI 11.2 server included on the TDS5000 Series.
The TDS5000 Series includes interfaces for control and peripheral expansion. An optional built-in printer (included) provides a snapshot and long banner print-outs of waveform and measurement results. An optional CD-RW drive (included) provides convenient and portable mass storage, making data transfer much easier for the user who does not connect the oscilloscope to the network via the standard LAN connection. Interoperability of the TDS5000 Series with Tektronix logic analyzers enables a time-correlated view of analog and digital signals to quickly track down elusive signal integrity problems in designs.
Options included in this sale:
* 1P - Built-in thermal printer
This instrument is currently supported by Tektronix
Full specifcations are available here: http:// /index_cards/T/Tektronix/TDS5000_Series.pdf
Accessories included: User Guide, Reference Guide, mouse, front cover, US-type power cord. Note: probes are not included in this sale

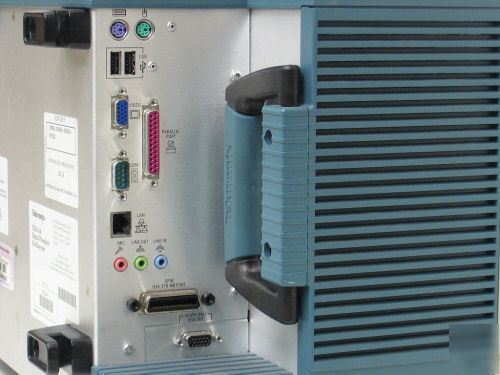

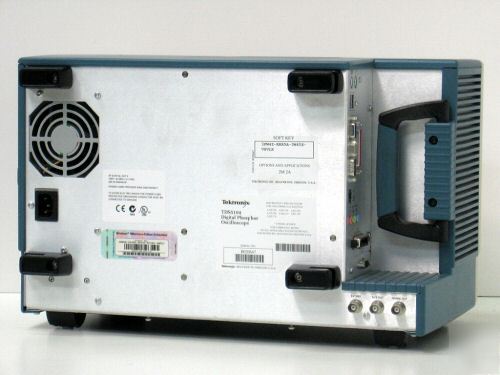

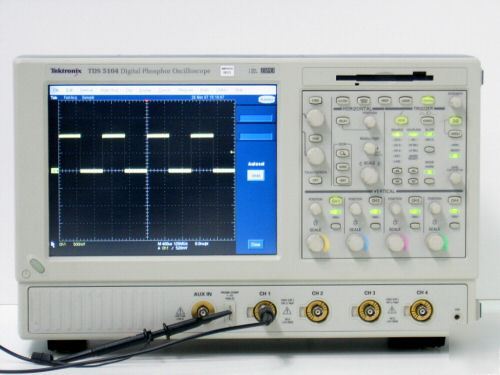

More about the instrument: Serial number: B020006. Manufactured in 2001. As you can see in the pictures, it is in good condition with few signs of wear and tear. Photos on this page are of a similar item to the one offered here. It is in the same good condition.
Guaranteed to be clean and fully operational, with 14-day right of return
