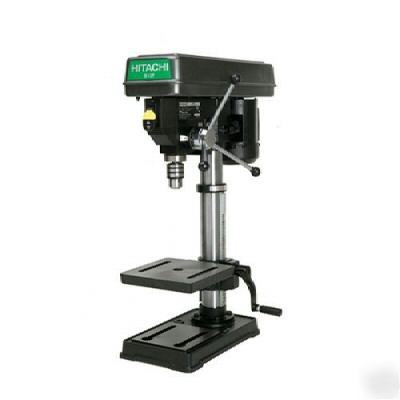

Hitachi B13F 10 in. drill press, benchtop with laser
* Motor: 1/3 HP, 3.5 amp, continuous duty, induction-type, 120v, 60 Hz
* 5 Speeds easy change with V-belt and pulleys : 680, 1160, 1780, 2380, 3000
* Drilling Capacity 1/2 inch in cast iron; Spindle Taper JT33; Spindle Travel 2.5 in; Chuck size 1/16 to 1/2 in. drill bit range
* Table 7.75 x 7.75 in; to spindle 10.75 in; L-R tilt 45 deg; Base to spindle 15.75 in
* Includes: Laser assembly, Drill chuck 1/2 in
Hitachi Power Tools introduces the all new B13F 10 inch Benchtop Drill Press, 5 speeds, with Laser Sighting for more accurate drilling. Swing on the drill press is 10 inches, 5 inches from center of drill chuck to column. Spindle travel is 2.5 inches and drilling capacity is 1/2 inch in cast iron. The speed range is 680 to 3000 rpm. Five speeds are easily changed while unit is turned off with V-belt and step pulleys. The Laser Sighting is mounted to the cast iron drill press head and provides a crosshair pattern to quickly and accurately target the drill location on the workpiece. The drill press column is steel, 2.25 inch diameter. The 7.75 x 7.75 inch cast iron work table uses a rack and pinion mechanism for ease of moving the table up and down. The table tilts left and right up to 45 degrees, it has a center drill-through hole and parallel mounting through-slots that are 9/16 inch wide x 5 inches long. The table can also be swung out of the way to use the machined cast iron base with slots as a work surface. Distance from spindle to table is 10.75 inches (maximum) and distance spindle to base is 15.75 in. The base includes holes for mounting the drill press to a bench or stand. The spindle taper is JT33 and a drill chuck is included - chuck size 1.5mm to 13mm (1/16 to 1/2 in), with self-ejecting chuck key. Motor is a 1/3 HP 3.5 amp continuous duty induction-type. Overall dimensions (inches): 11.3 width x 19.3 depth x 27.5 height.
Sometimes if you overlook what you think is a shortcoming, you can purchase a great product and save a lot of money.
