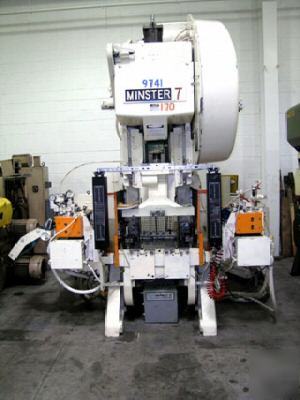

75 ton, minster, o.b.i. flywheel, single crank, press
Liberty Machinery Company-You are looking at a 75 Ton, Minster, 5" Stroke, 24"x36" Bed, 3.75" Adjustment, 17" S.H., 60-180 SPM, feedln-Serial No. SS7-23445Condition - UsedNew - 1980-SPECIFICATION:Capacity 75 Ton
Shut Height Bed to Slide (SDAU) 17"
Flanged Slide Face Area 30" L-R x 17" F-B
Approximate Overall Dimensions 65" L-R x 95" F-B x 144" H
Approximate Weight 17,000 Lbs.
-EQUIPPED WITH:Air Clutch and Brake with Selector Controls, Air Counterbalance
Crankshaft Extension Right-Side
Automatic Recirculating Lubrication System
Electrical Controls Arranged for 240/3/60 583/1750 RPM
Minster Operator Console (Full Press Function Controls)
Data Instruments (Wintriss Control Group) "Spectrum" Press Controls
Link Systems "Link Lite Black Max" Light Curtains
2000 Lb Littell No. 20-18 Auto Centering Reel,
ID Range 15"-20", Maximum OD 48", Maximum Width 18"
Indramat "CFS" Computer Feed Servo System
Coe Servo Feed Push Roll Feed 3" Diameter Rolls 18" x .125" Capacity
Coe Servo Feed Pull Roll Feed 3" Diameter Rolls 18" x .125" Capacity
