Rod-l M100DC hipot tester: 5.5 kvdc calibrated

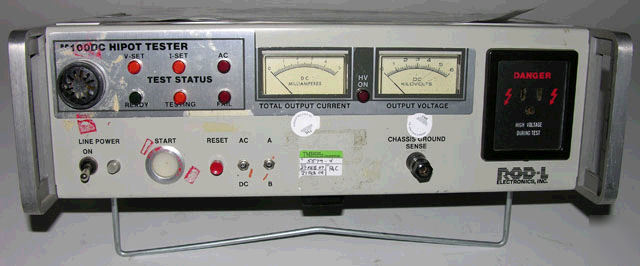

Rod-L M100DC HiPot Tester: 5.5 kVDC CALIBRATED
Rod-L M100DC HiPot Tester: 5.5 kVDC CALIBRATED
This is a used unit, in excellent operational condition.
This unit is in calibration until 2/27/08.
Calibration is NIST traceable from a certified independent lab and comes with certificate of calibration, test data and dated calibration sticker.
Unit comes as shown, no other accessories are included.
Winner will receive one of the following serial numbered units:
Click the link below for the data sheet.
Unit comes with a certificate of calibration. All units will have a dated calibration sticker.
All sources are traceable to NIST, except where noted. We do not supply NIST numbers in accordance with NCSLI Position Statement 96-1: "test report numbers should not be used nor required as proof of the adequacy or traceability of a test or measurement". NIST, NVLAP and A2LA have concurred with this position. NCSLI also notes that international standards ISO 900X, ISO Guide 25 (ISO/IEC 17025), ISO 10012 and ANSI/NCSL Z540-1 do not require the use or reporting of NIST test report numbers.
Manufacturer's Specifications/Features:
(Please note that not all features may be included in this item)
* Performs Dc dielectric withstand test up to 5.5 KVDC at 10 milliamperes (5mA standard)
* Performs concurrent ground continuity test
* ARC and OVERCURRENT detection circuits
* Fast HV shutdown within 2 milliseconds
* Fast discharge of Device Under Test (DUT) and other test standards
Output voltage ramp rate: 50 V/sec to 5000 V/sec
115/230 Vac ±10%, 44-66 Hz operation
This unit retailed for over $1,200.00 brand new, and is currently selling for around $800.00 used. Here is your chance to get one at a fraction of the original price!
ANOTHER GREAT DEAL FROM TECHRECOVERY!
Item #: PWH03226-01-08 - 14R40
* Test equipment with pre-calibration has a 100 day guarantee from defect and 10 day right of return.
* Please allow an extra 7 - 10 business days for delivery for items that require crating and freight delivery.
* At TechRecovery, your complete satisfaction is our goal. If you have any questions, issues or suggestions on how we san serve you better, we’d like to hear from you., please call us at (***)-634-1530 to talk to a team member who can assist you.
