2008 fluke meter model 289 fvf kit factory sealed lr

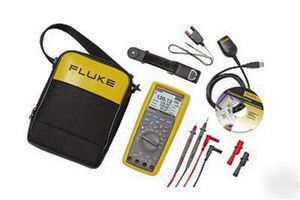

BRAND NEW 2008 FLUKE MULTIMETER MODEL 289 FVF KIT
* Fluke-289 True-rms Industrial Logging Multimeter with TrendCapture, LoZ, LoPass filter, and Lo Ohms
* FVF-SC2 FlukeView Forms Software and cable
* TL71 Silicon Test Lead Set
* 80BK-A Integrated DMM Temperature Probe
* TPAK Magnetic Meter Hanger for hands-free operation
* C280 Soft Case for meter protection and accessory storage
True-RMS logging multimeters with TrendCapture!
The next generation high performance multimeters designed to meet the challenges of today's industrial and field service professionals. Recorded data can be viewed on the meter in TrendCapture or transferred to a PC with optional FlukeView forms software. TrendCapture plots measurements as single line to help detect anomalies. Advanced features are combined with True-RMS 50,000 count 1/4 VGA dot matrix display.
* 50,000 count, 320 x 240 dot matrix LCD display with backlight. Multiple sets of measurement information can be read on display
* Record events and trends helpful for troubleshooting intermittent problems or profiling loads
* Name and recall saved measurements made in the field
* Internal memory allows stand-alone logging for up to 180 hours
* Optical USB PC communication interface allow for easy document download to FlukeView Forms software
* F1-F4 Soft Keys provide flexible user function menus
* "i" info button on meter actives help screen for measurement functions
* Navigation keys allow you to quickly select menu choices and scroll through the information screens
* LoZ - low input impedance function helps prevent false reading due to ghost voltage
* 50Ω range for motor winding and low ohm measurements
* Low pass filter allows for accurate measurement on motor drives
* Field upgradeable and expandable as new capabilities become available
Voltage AC/DC: 50mV, 500mV, 5V, 50V, 500V, 1000V
Current AC/DC: 500µA, 5000µA, 50mA, 400mA, 5A, 10A
Resistance: 50Ω, 500Ω, 5kΩ, 50kΩ, 500kΩ, 50MΩ 500MΩ
Capacitance: 1nF, 10nF, 100nF, 1µF, 10µF, 100µF, 1000µF, 10mF, 100mF
