1998 chevalier dm 323 ram edm 30AMP dro machine

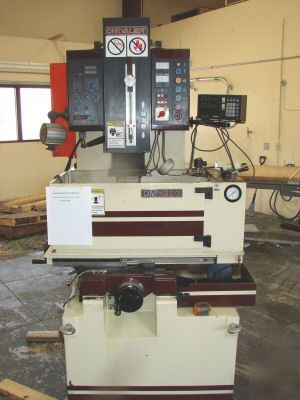

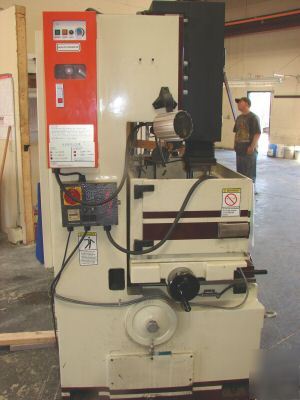

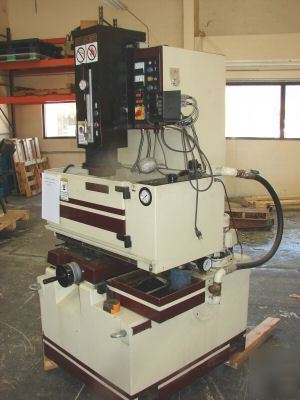

* Chevalier model Dm-323 ram type edm machine.
* Purchased new on 8-31-1998

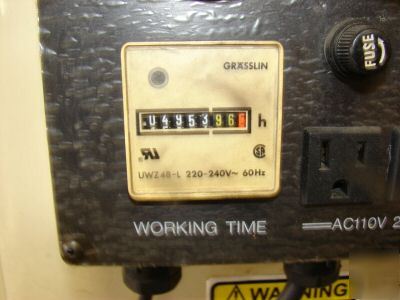

* Excellent low hour machine (4,953)
Table Size 11-3/4" x 9-5/8
Inside Splash Guards 31" x 19-1/2" x 14

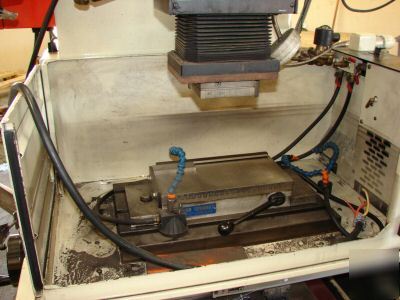

Walker Ceramax 6" x 12" Permanent Magnetic Chuck
Chen Ying 1-Shot Lubrication;

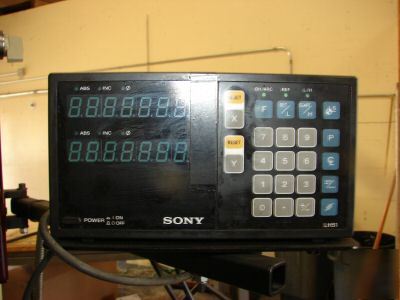

Sony Model LH51-2 2-Axis Digital Readout.
WHEN OTHER MACHINES CAN'T CUT IT,
TRY CHEVALIER DIE SINK EDMs.
* Repeatability. Chevalier EDMs workheads travel on Schneeberger anti-friction linear needle roller guideways, driven by DC servo motors with digital servo control.
Benefits: smooth traverse, precise positioning and repeatability.
* Speed. PC-based, conversational control monitors machining conditions and automatically adjusts On/Off time, spark gap, servo sensibility and machining time.
Benefits: elimination of arcing, reduced electrode wear, better surface finish and faster material removal rate.
* Versatility. Chevalier EDMs are so versatile, you can do just about anything with them:
Benefits: boring, cutting, drilling & shaping capabilities on hardened steels & exotic metals. Easy jobs on small holes, irregular shaped holes, mold cavities and mold cores.
* Better Flushing. Three flushing systems (vacuum, pressure and pulse)
Benefits: less heat and constant dielectric fluid circulation
* Safety. Four standard safety devices: dielectric temperature sensor, dielectric level control, and temperature and photo cell detectors with automatic fire extinguisher and power shut-off.
* Rigid Construction. All-Meehanite cast iron, fully ribbed structure.
Benefits: vibration-free operation, long machine life.
* MODEL: DM-323 s/n 0003331 Year 1998
WORK TANK ..................................... 29.5" X 18.9" X 11.8"
WORK TABLE AREA (X & Y)........................ 19.7" X 11.8"
X-AXIS TRAVEL ................................. 11.8"
Y-AXIS TRAVEL ................................. 7.9"
Z-AXIS TRAVEL ................................. 5.9"
MAXIMUM ELECTRODE LOAD ........................ 132 LBS.
MAXIMUM WORKPIECE WEIGHT....................... 1,100 LBS.
DIELECTRIC RESERVOIR........................... 78 GALLONS
MACHINE FLOOR SPACE DIMS. ..................... 51" X 52" X 85"
MACHINE WEIGHT................................. 3,350 LBS.
SERVO SENSITIVITY ADJUSTMENT
PULSE PRESSURE - VACUUM FLUSHING

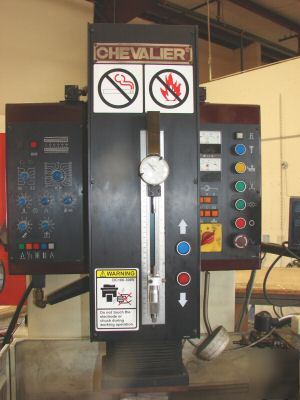

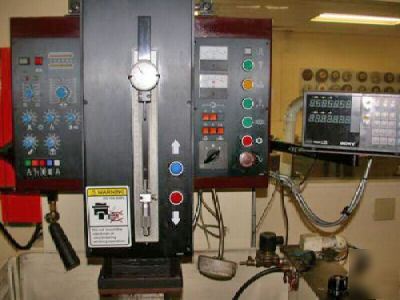

MICROMETER STOP ADJUSTMENT FOR DEPTH
ITEM COMES AS SHOWN IN PICTURE. And there is never anything included that is not shown or stated.
You are welcome and encouraged to view items in person.
Most items are quaranted if not then the following applies.
All items are sold "AS - IS, Where - IS" and with no refunds or returns. Items are described to the best of our knowledge, however, We at Fabmasterd Machinery and/or the Seller make no guarantees regarding accuracy, errors or omissions in item descriptions and make no warranty, express or implied as to the nature, quality, value or condition of any item.
