Microwave solutions 61.5 mhz split bp duplexer CD1481

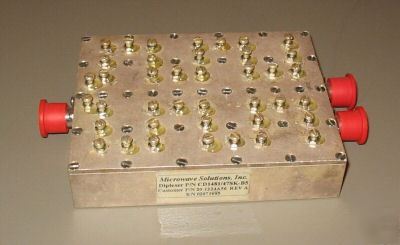

Microwave Solutions Model CD1481/47SK-B5 Bandpass Duplexer.
Pass Band Insertion Loss - <1.4dB, 1.3dB TYP
Pass Band Ripple - M0.5dB P-T-P
Low Attenuation - 75dB Min. 80dB Typ
High Attenuation - 75dB Min. 80dB Typ
Isolation Between Filters - 75dB Min
Utlimate Stop Band Atenuation - 1100dB Min
COM, LOW, HIGH Connectors - N-female
Pass Band Return Loss - -17dB Max.
Input/Output Impedance - 50 Ohm
