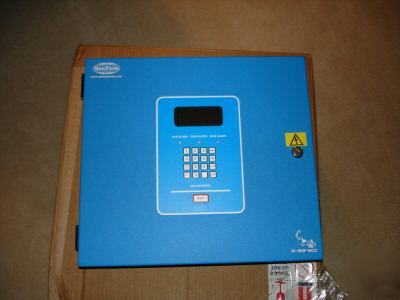

Sentech refrigerant monitor
Industrial and Commercial Applications
This unit will monitor up to 8 chillers at a time.
Below is unit data: Please don't hesitate to ask questions:
* Allows Compliance with ASHRAE Standard 15
* Detects all halogen based refrigerants
* Refrigerant type can be field changed without recalibration
* Continuous digital display of system status
* Analog output for remote monitoring
* System malfunction detection and indication
* Models are available to accommodate sampling points located up to 250 feet (76 meters) from unit
* Fresh air inlet for automatic rezeroing
* Individually adjusted alarm points for each gas type being monitored
* Multizone capability at a modest premium over single zone units
* IR-SNIF-MCD8 8 Zone, 3 Alarm levels
* Individual Zone alarm output relays
* Remote transmitters, Carbon Monoxide, Oxygen, etc
* Strobe light, horn, strobe/horn combination
Low Alarm 0 to 100% of Full Scale
Main Alarm 0 to 100% of Full Scale
High Alarm 0 to 100% of Full Scale
3 Alarm Relays, 1 Horn Control Relay, each with 4 Form C contacts
