Mastech dc power supply dual variable 0 - 30V @ 0 - 5A

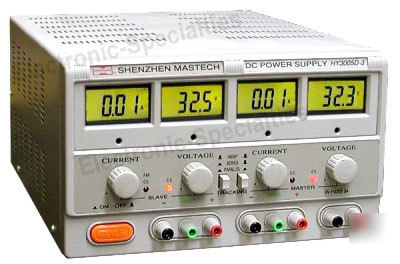

MASTECH HY3005D-3 HQ VARIABLE LINEAR DC POWER SUPPLY
DIGITAL BACKLIT LCD DISPLAY METERS
DUAL VARIABLE VOLTAGE: 0 TO 30 Volts + CURRENT: 0 TO 5 Amps
This triple output grounded DC power supply is of very high quality construction by MASTECH. Excellent for lab use with the two variable 0-30 volt 0-5 amp output as well as a third fixed 5 volt 3 amp output. Other uses include science projects or any other use where stable voltage up to 30 volts is required. For the two variable ouptputs the voltage is variable from 0 to 30 volts and the current is also variable from 0 to 5 amps. The 2 sets of dual digital LCD meters display the actual voltage and current within 2 percent.
Both the voltage and the amperage are adjustable for absolute BEST precision.
Heavy duty, stable output, linear transformer type with super low noise, output polarity: positive and negative, low ripple voltage less than 0.5 mVp-p, overload protection circuit, state of art design and cooling fan driven.
SPECIFICATIONS FOR THE MASTECH HY3005D-3:
Three Power Outputs:2 Variable: 0 - 30 Volts @ 0 - 5 Amps
Constant voltage/ Constant Current
Voltage and Current adjustment
Power effect: CV<0.01%+2mV, CC<0.2% + 2mA
Overload effect: CV<0.01% +3mV, CC<0.2% +3mA
Waves and noises: CV<0.5mV r.m.s, CC 3mA, r.m.s
Protection: Current limited & Short circuit protection
Operating Temperature : 0 - 102 F ( 0 -40 C), Relative Humidity: <90%
LCD Accuracy is within + or - 2%
