Cinncinati cinova 80 knee type 2 horizontal mill
Manufactures Suggested Retail Price when new was:
Back Ground Information asset:
USED CINNCINATI CINOVA 80 205-12 MILL.
Really sharp looking Mill! Came from a maintainance facility that was closed.
3rd Party Inspection report for asset:
-For Reference Only-
205-12 CINCINNATI-MILACRON "CINOVA-80" PLAIN
HORIZONTAL MILL
New 1973, Serial No. 31422P5Z0008, Model 205-12
EQUIPPED WITH:
Automatic Table Feed Cycle
Motor On Knee
(2) Arbor Supports
Coolant System (Built-In)
CATALOGUE SPECIFICATIONS:
Table Size, Overall, L x W.............. 56-1/2" x 12"
Table Working Surface, L x W............ 56-1/2" x 12"
Longitudinal Table Travel............... 28"
Cross Saddle Travel..................... 10"
Vertical Knee Travel.................... 18-1/2"
Spindle Taper........................... #50 NSTD
(16) Spindle Speeds, Range.............. 25 to 2000 RPM
(16) Longitudinal and Cross Feeds....... 1/4 to 30 IPM
Vertical Feeds, Range................... 1/8 to 15 IPM
Spindle Center to Table Top, Maximum.... 18-1/2"
Spindle Center to Table Top, Minimum.... 0"
Power Rapid Traverse, Long. & Cross..... 150 IPM
Power Rapid Traverse, Vertical.......... 75 IPM
Spindle Motor, Horsepower............... 5 HP
Feed Motor, Horsepower.................. 1-1/2 HP
Electrical System....................... 220-440/3/60
Floor Space Required, W x D............. 101" x 83"
Weight, Approximately................... 5100 LBS.
See MORE INFORMATION under about about me above, or call (***)-995-5000 Sales Ext. 112

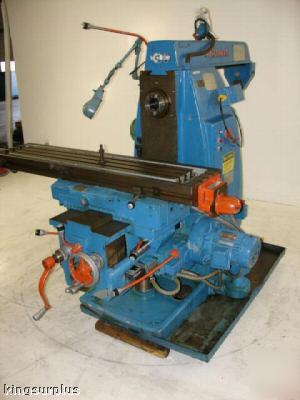

Asset Location: DRW1: Main Del Rio TX. ZIP 78840 Area: RCV Photos of actual asset
Industry: Industrial Supply, MRO
Description & Quantity in stock:
CINNCINATI CINOVA 80 KNEE TYPE 2 HORIZONTAL MILL
Condition: Used Very Clean looks better than good to us
Tested: Reported to us to have been working when removed from service!
Please see inspection report below for 3rd party inspection reports when available
Horsepower / Amps / KW / KVA: 5 HP/ 60HZ
