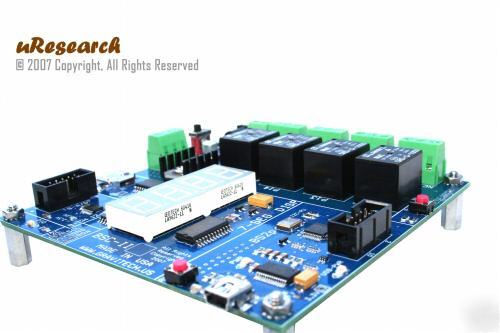

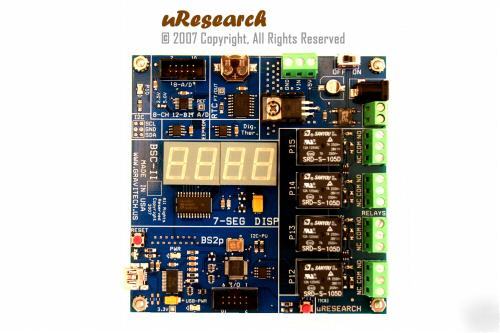

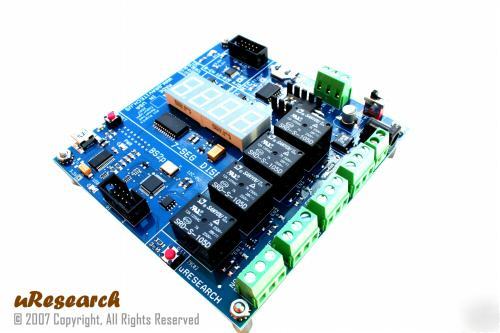

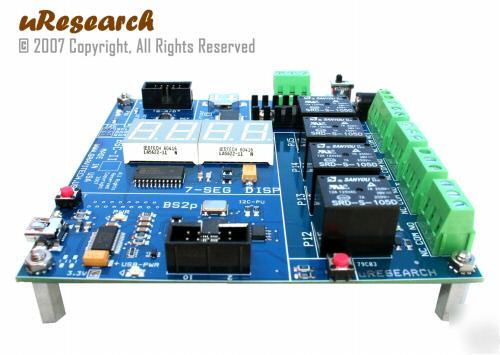

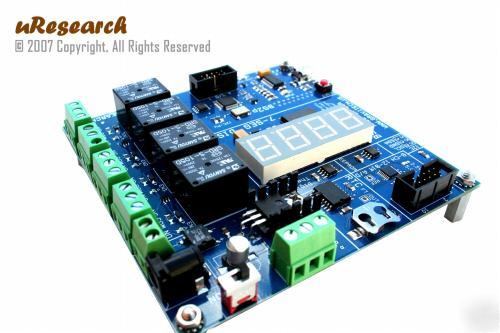

Bsc-ii basic stamp 2P controller 7SEG relay rtc a/d I2C
The BSC-II has on-board BS2P module, which fully compatible with any version of Basic Stamp Windows Editor.
· Mini USB connector for BASIC Stamp IC programming and serial communications during run-time
· I2C Four Digits 7-Segment Display
· I2C 128K (16,384 x 8) EEPROM
· I2C 8-CH 12-BIT analog-to-digital converter
· 4-CH relays with NC, COM, NO output and status LED (can handle up to 12A@125VAC, 7A@250VAC or 10A@ 28VDC)
· Normally-open pushbuttons switch
· On-board regulator delivers up to 1A
· 2.1mm power plug with auto-adjust polarity and external power supply connector
· Programming and serial communication status LED

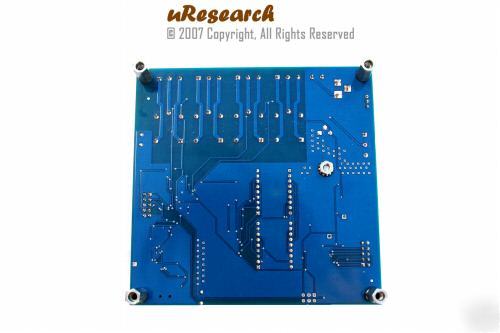

· High quality double sided PCB
· PCB size is 4.55 x 4.60 inches
For more information please see: BSC-II User Manual
BSC-II USB Driver Installation: BSC-II USB Driver Installation
BSC-II Exp1 Experiment with I2C 7-Segment Display and I2C Digital Thermometer BSC-II Digital Thermometer Experiment
BSC-II Exp1 Code BSC-II Temperature 7SEG.bsp
BSC-II Exp2 Experiment with Push Button (P11) and Four Relays (P12-P15) BSC-II Relays & Push Button Switch Experiment
BSC-II Exp2 Code BSC-II 4RELAYS-PBS.bsp
BSC-II Exp3 Experiment with I2C 8-CH 12-BIT Analog-to-Digital Converter BSC-II 8ADC Experiment
BSC-II Exp3 Code BSC-II 8ADC.bsp
Basic Analog and Digital by Parallax BAAD_V12
Source code testing I2C 7-SEGMENT BSC-II 7SEG.bsp
Source code testing I2C Real-time Clock BSC-II RTC.bsp
Source code testing I2C EEPROM BSC-II EEPROM.bsp
SAA1064 I2C 7-Segment Display Driver datasheet SAA1064
ADS7828 I2C 8-CH 12-BIT ADC datasheet ADS7828
DS1340C I2C RTC datasheet DS1340C
TMP175 I2C Digital Thermometer datasheet TMP175
24WC128 I2C EEPROM datasheet 24WC128
Items included for this action:
· Carefully designed PCB board with components fully assembled and tested
· All of the source codes used to test the board (in PBasic language)
“This is sold fully assembled and testedâ€
