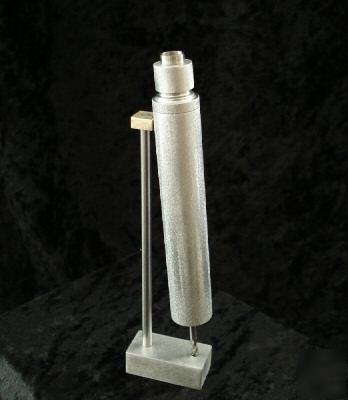

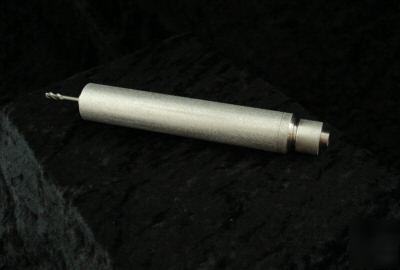

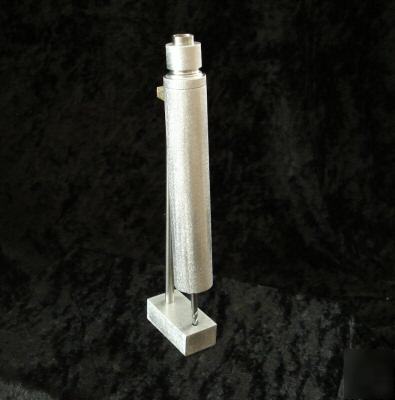

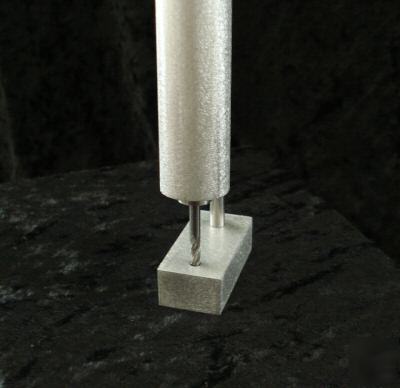

Db-200A high speed precision spindle. (cnc routers)
(I APOLOGIZE FOR THE WAIT, BUT THIS ITEM MAY TAKE UP TO 7 DAYS TO DELIVER)
This is my new entry level spindle design based off the DB-300S. I use all of the same techniques as I do in my 300 series, but the housing and pulley are machined from solid Aluminum bar stock.
This is designed for light duty work such as Wax cutting for jewerly, PCB's, Routing and Drilling, Etching,..ect.

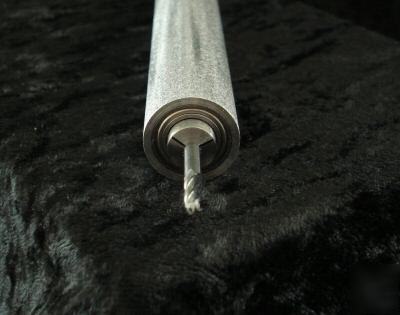

The collet system is the same. It is tightened by a 10-32 draw-bolt which runs through the center of the spindle shaft and pulls the 1/8" (3mm on request) collet into the taper and closes onto the cutter shaft, much like on a R8 collet systems of the popular Bridgeport brand.
The housing and pulley are make of 6061-T6 Aluminum and is given a scratch finish. The spindle shaft is made from 303 Stainless Steel for corrosion resistance. The collet is made of Leaded Steel to produce the high tolerances needed for this design.
Some of the spindles main features include:
* Double Stainless Steel Bearing Design Rated at 60,000 rpm's.
* Aluminum is given a "Scratch Finish". Resist Mounting Marks and Won't Tarnish.
* 1/8" (.125") Three Split Collet. 3mm on Request.
* Max Recommended Spindle Speed: 35,000 R.P.M.
* Average Bearing Life: 1000 Hours @ 25,000 R.P.M.
* Spindle Length Measures 5.000" and has A .750" Dia. Body.
