#9351 - wasino model leo-200A engine lathe

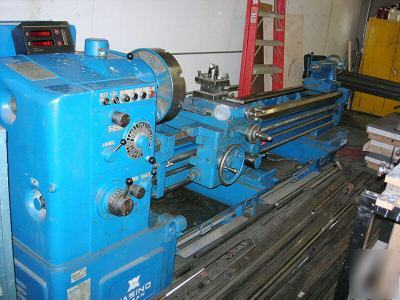

WASINO MODEL LEO-200A ENGINE LATHE
Accepts center of Morse Taper No. 4
American standard camlock spindle nose 6" D-1
Spindle speed range, RPM 23 - 1800
Leadscrew diameter & threads/inch 1-1/2" - 4 Thd.
Range of threads per inch 4 - 28
With optional change gear 8-56 TPI
No. of different feed changes 32
Range of feeds per revolution .002" - .0276"
Spindle graduation, 1 div. equals .100"
Carriage bearing on bed 22-3/4"
Compound rest top slide travel 6"
Compound swivel graduated 45 deg.
Graduation of compound collar .001"
Graduation of cross slide collar .001"
Main drive motor, AC constant HP 10
