STDV711F evaluation board for STR711FR2T6
STDV711F Evaluation Board for STR711FR2T6
STDV711F Evaluation Board for STR711FR2T6
- ARM7TDMI Evaluation Board based upon STMicroelectronics STR711FR2T6
- RS232, USB, SPI, I 2 C, A/D, RTC, WDG, LED, Buzzer…
- Enhanced I/O Expansion for HDLC, SC…
- Plenty of software examples, all in source code

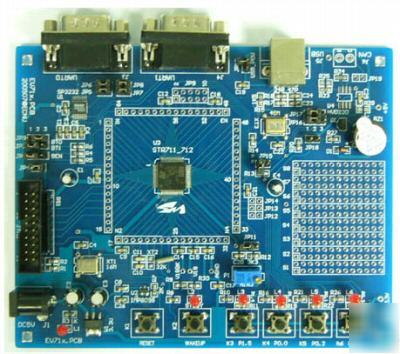

The STDV711F evaluation board is intended as a low-cost development platform to enable rapid evaluation of the STR71x series of 32-bit 64-pin ARM7 core microcontrollers from STMicroelectronics. The board is based on STR711FR2T6 microcontroller with on-chip 256+16Kbyte high-speed single voltage flash memory and 64Kbyte high-speed RAM. It is a highly integrated microcontroller with an embedded ARM7TDMI core and is compatible with all ARM tools and software. Serial peripheral interfaces include 2 SPIs, 2 IIC interfaces, 4 UARTs, and HDLC, SC, MMC interfaces. The device provides a USB interface and a 4-channel 12-bit A/D converter, 4 16-bit standard timers, RTC (Realtime Clock), WDG (Watchdog) and enhanced I/O ports and supports JTAG with debug mode trigger request.
The STDV711F evaluation board takes advantage of STR711FR2T6 and has several boot mode selections. It integrates on board 2 RS232 UARTs, LEDs, test buttons, an ADC input and speaker to create a stand-alone versatile test platform. A 20-pin JTAG interface is also provided on this board to support high-speed download, in-circuit debugging and flash programming. It integrates a high-speed USB2.0 interface and 30 I/Os of the CPU are fully expanded on the board to support HDLC, SC interfaces and etc.
The board comes with documentation, schematics and plenty of example programs in source code to support the hardware platform. This is an idea platform for applications such as biometric chip card readers, point-of-sale and vending machines, testing equipment, USB memory sticks, PC keyboards and fingerprint transponders.
Ø Working temperature: -40~+85 Celsius
Ø Processor : STR711FR2T6 with embedded 272k Bytes (256k+16k) FLASH memory and 64k Bytes SRAM memory
Ø USB2.0 full speed (12Mbs) interface
Ø UART0 and UART2 with 2 RS232 ports (can interconnect to each other for RS232 communication experiment)
Ø 6 LED indicator light: one for power, one for standby, four others are general used 4 channel ADC and 1 on-board regulator (ADC experiment)
Ø 30 CPU multi-functional re-used I/O expansion (HDLC, Smart Card,etc.)
Ø IAP (In Application Programming) function
Ø A standard 20-pin Debug-JTAG connector
STR710F Series Microcontroller Function Block Diagram
3.0 to 3.6V (optional 1.8V for core)
We provide plenty of software examples for this STDV711F evaluation board, all in source code. Each program has two versions to correspond respectively with ADS and IDE. Separately saved under the “ADS†and “Embest†sub-directories. The structure of the directories is as below:
Note: Before downloading programs through emulator, please set the evaluation board in internal RAM boot mode. (BOOTEN=1, BOOT.1=1, BOOT.0=0)
All source codes under ADS environment
Common file including driver modules of main peripheral equipments
Driver modules of STR71x on-chip peripherals
STR71x USB software library ( including a USB mouse demonstration )
Low-power mode and wake-up test program
Program source code under IDE environment (structure of sub-directories similar to that under ADS environment )
Ø 1x STDV711F Evaluation Board
Ø IDE for ARM (IDE, editor, GNU ARM Compiler and Linker, debugger), evaluation version no need license. With a Jtag cable connecting evaluation board with PC via the parallel port of PC.
- user manual, circuit schematic drawing, datasheet
STDV711Fâ„¢ Evaluation Board Kit contains a STDV711F target board, development tools listed in below table, examples software and some other accessories in a low price.
