11" OD GRINDER, Yam GU-27-60H HYD. TABLE, MAN
11" OD GRINDER, Yam GU-27-60H HYD. TABLE, MAN

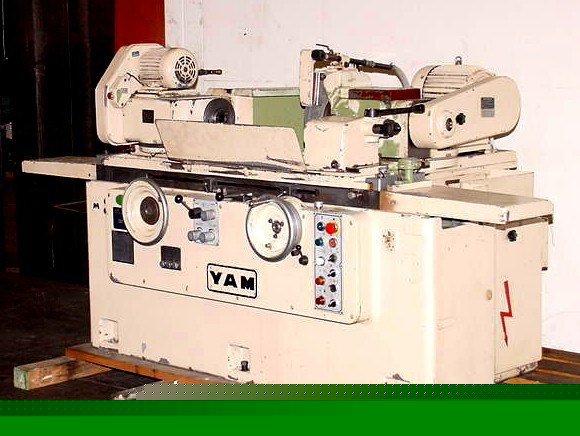

11" X 24" YAM UNIVERSAL CYLINDRICAL GRINDER
MODEL: GU-27-60H S/N: L67020 NEW: 1988
MAXIMUM SWING OVER TABLE .............. 10.629"
DISTANCE BETWEEN CENTERS............... 23.6"
MAX. WORKPIECE WEIGHT ................. 286 LBS.
TRAVERSE SPEED......................... 2" TO 155" IPM
TABLE SWIVELS, CLOCKWISE/CCW .......... 9 DEG./4 DEG.
STANDARD GRINDING WHEEL SIZE........... 14" O.D. X 2"W
SWIVEL RANGE .......................... +/- 30 DEGREES
GRINDING WHEEL SPINDLE SPEEDS (2) ..... 1700/1900 RPM
WHEELHEAD DISPLACEMENT PER REV. OF
HANDWHEEL (COARSE/FINE) .............. 0.0625"/.0000625"
MAX. INFEED TRAVEL .................... 6- 15/16"
INFEED HANDWHEEL PER REV. ............. 0.039"
MOTORIZED WORKHEAD AND TAILSTOCK:
INFINITELY VARIABLE WORKHEADSPEEDS .... 46 TO 360 RPM
WORKHEAD TAPER......................... #4 MT
WORKHEAD SWIVEL RANGE ............. 30 DEG.CW/ 45 DEG. CCW
TAILSTOCK TAPER........................ #4 MT
TAILSTOCK SPINDLE TRAVEL .............. 1- 3/16""
APPROX. MACHINE WEIGHT ................ 5,511 LBS.
APPROX. DIMENSIONS .................. 78"L-R x 88"D x 59"H
HYDRODYNAMIC SPINDLE BEARINGS W/AUTO LUBRICATION
DUAL LIVE/DEAD HEADSTOCK SPINDLE
5 H.P. 3/60/230-460 VOLT WHEELHEAD DRIVE MOTOR
** INSPECT UNDER POWER IN OUR HARRISON, N.J. *
** EXCELLENT CONDITION & APPEARANCE !! **
Machine Location: HARRISON, NJ
