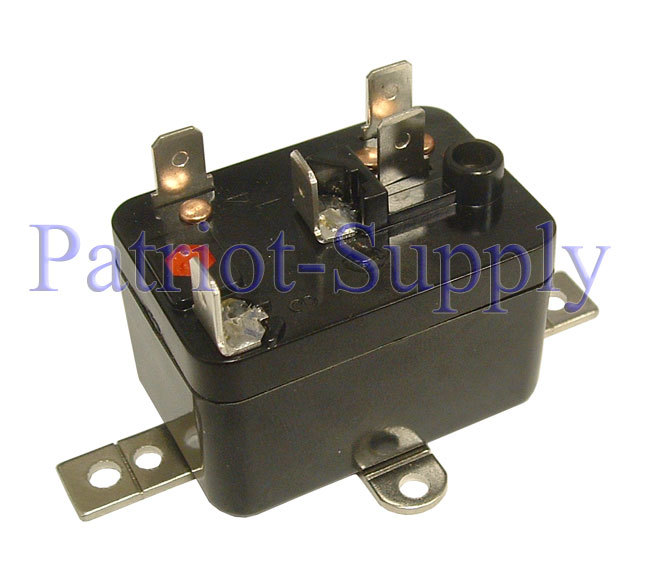

White-rodgers 90-294, 90-294Q enclosed fan relay 24V
Fan Relay-Type 84, 115/120V Coil, SPDT Used for Switching Fan Motors, Solenoids, Relays, Resistive Loads and General Purpose Switching.
• Compact, totally enclosed design.
• For heating and cooling applications and general switching.
• Quiet, reliable and economical.
* Temperature Range = –40°F to 150°F
* Mechanical Life (no load) = 1,000,000 operations, 60 operations/min.
* Electrical Life (rated load) = 100,000 operations, 6 operations/min.
Load test making inrush rating (0.4 to 0.5 P.F.); breaking 100% continuous rating (0.64 to 0.8 P.F.) * Weight (approximate) = 2.5 oz
* Agency = U.L. file number E12139 or E22381 C.S.A. file number LR13360
* Coils, Frequency = 50/60 Hz
* Coils, Insulation = Class B
* Coils, Termination = 1/4†Quick Connect
* Coils, Operate = 85% of nominal coil voltage; 110% maximum safe operate
* Coils, Duty Cycle = Continuous
