Fluke 80K-40 high voltage probe 40000 volts 40 kv

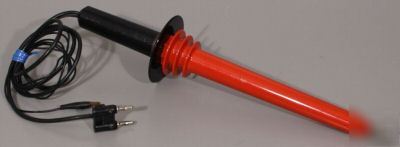

Fluke 80K-40 High Voltage Probe
Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Fluke and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The 80K-40 is a high voltage accessory probe designed to extended the voltage measuring capability of an ac/dc voltmeter up to 40,000 volts. In essence the probe is a precision 1000:1 voltage divider formed by two matched metal-film resistors. The unusually high input impedance offered by these resistors minimizes circuit loading and optimizes measurement accuracy. A special plastic body houses the divider and provides the user with isolation and protection from the voltage being measure.
Voltage Range: 1 kV to 40 kV dc or peak ac, 28 kV rms ac
DC Accuracy: +/-2% from 20 kV to 30 kV (calibrated 1% at 25 kV); changes linearly from 2% at 30 kV to 4% at 40 kV and from 2% at 20 kV to 4% at 1 kV
DVM Compatibility: The 80K-40 provides rated accuracy when used with any voltmeter having a 10 MOhms input impedance. When used with voltmeters with other input impedances, a correction factor and/or shunt resistor is used to obtain the correct value.
Capability List for some Fluke Digital Voltmeters and Multimeters:
* 8502A (On some ranges inputs must be shunted to equal 10 MOhms)
* 8505A (On some ranges inputs must be shunted to equal 10 MOhms)
* 8506A (On some ranges inputs must be shunted to equal 10 MOhms)
* 8520A (On some ranges inputs must be shunted to equal 10 MOhms)
* 8522A (On some ranges inputs must be shunted to equal 10 MOhms)
* 8600A (On some ranges inputs must be shunted to equal 10 MOhms)
* 8810A (On some ranges inputs must be shunted to equal 10 MOhms)
* 8840 Series (On some ranges inputs must be shunted to equal 10 MOhms)
* 8920A (Y9109 Adapter Required)
* 8922A (Y9109 Adapter Required)
For More Pictures Please Click the Following:
