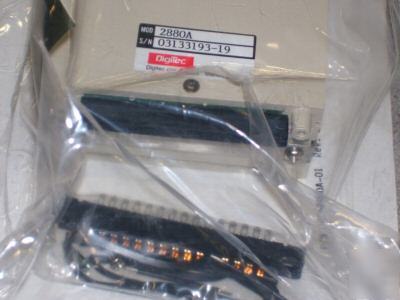

Digital panel meter model 2880A
Model 2880A RS-232C/20mA remote display. Part of the IQ-280 series microprocessor based, intelligent digital panel meter line. Display receives serial ASCII data over a two-wire RS-232C or 20mA current communications link. The 2880A processes the numeric data and displays this data with all the features and options available to the IQ-280 series.
Display: 7 segment, 5 Digit, blue-green, vacuum fluorescent, 0.5â€
CMV: !2500V peak, input power to line
Case: 1/8 DIN cutout; splash-proof NEMA 12 front panel; oil-tight with panel seal gasket.
Dimensions: 2†high x 3.83†wide x 5.36†deep.
Depth behind panel: 5.01†min. to 6.01†max depending on model and type of connector.
Power: 115VAC or 230VAC !10%, 10VA, user-selectable on edge connector
Display rate: 2 updates/sec. 300 baud. 4 updates/sec. 1200 baud
Response time: 100 ms typical from terminator to display alarm.
Input data: RS-232C or Isolated 20mA current loop 300 or 1200 baud
Terminations: solder terminal connector
Input data format: 1 start bit. 8 data bits, parity not checked, one or two stop bits.
