33 ton, 2.27 oz. cincinnati injection molding machine

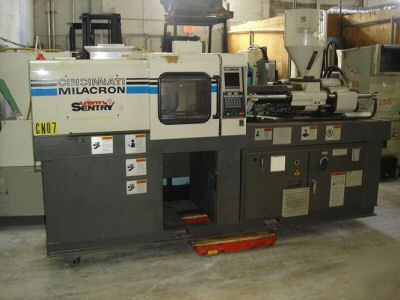

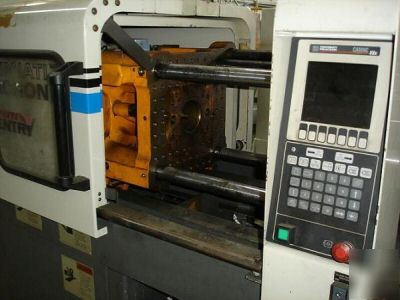

33 Ton, 2.27 Oz. Cincinnati Injection Molder
Model: VSX-33-2.27 Series: VSX Vista Sentry
Platen Size ........................ 15.55" x 15.55"
Distance Between Tie Bars .......... 10.24" x 10.24"
Clamp Stroke ................................. 9.84"
Maximum Daylight ............................ 11.81"
Minimum Mold Height .......................... 4.72"
Maximum Mold Height ......................... 11.81"
Motor ........................................ 10 HP
Screw Diameter ............................... 1.10"
Screw Speed Max ........................... 4000 RPM
Dimensions ............... 122.3"L x 42.7"W x 77.8"H
Weight .................................. 4,380 lbs.

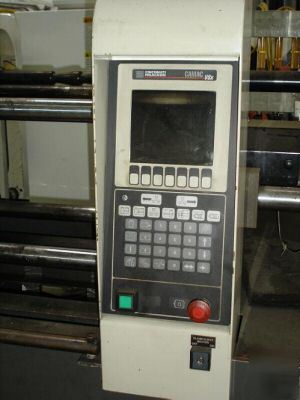

Camac VSX Full-Process Control
