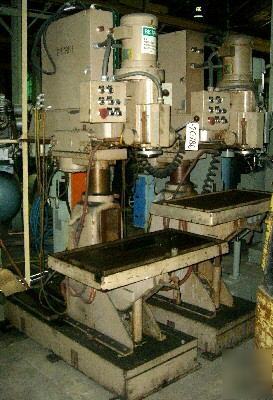

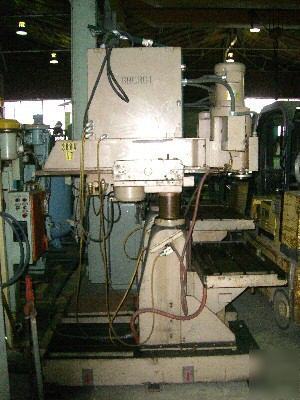

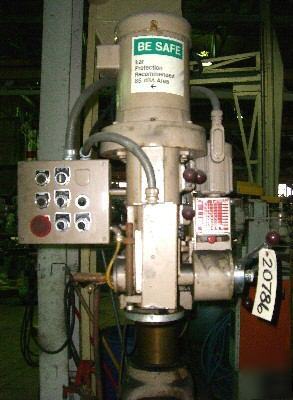

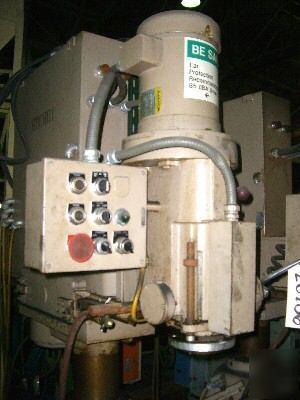

3' x 6" htc radial drill, no. 300, 96-1140 rpm (20786)


3' x 6", HTC, No. 300, 96-1140 RPM, 20" x 40" Tbl, 4 MT, Tapping, Pwr Elev, 3 HP Our stock number: 20786 MODEL: 300
Spindle Speeds: (8) 96 to 1140
Maximum Work piece Diameter: 6'
Spindle To Column Housing: Min: 2-1/2" Max: 36"
Spindle To Table: Min: 4" Max: 53"
Spindle to Base (Bach Base): Min: 35" Max: 53"
Table Size: 20" x 40" w/(3) T-slots
Base Work Surface: 20-1/2" x 24" w/(3) T-slots
Spindle Quill Diameter: 2-3/4"
Full 360 Degree Arm Turning Radius
3 HP Motor, 1725 RPM 230/460/60/3
1/2 HP Elevation Motor, 900 RPM 230/460/60/3
**********PLEASE READ BELOW**********
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
**We will load on a flat bed, open truck or trailer free of charge. **
If you want to purchase an item and have circumstances requiring the item to be picked up at a later date, please inform us before the item is purchased.
We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. (***)-745-6008
