Lantronix xport direct direct+ to breadboard adapter
Picture of the assembled adapter

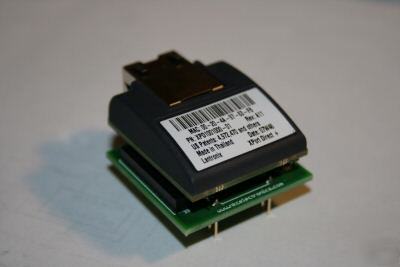

Picture of the adapter with the XPORT Module
Picture of the adapter with the XPORT Module
Picture of the adapter with the XPORT Module
Lantronix XPORT Direct / Direct+ to breadboard Adapter
XPORT Direct / Direct+ is Lantronix's Embedded Device Server. It uses 2mm headers that makes it difficult to use a standard 0.1 inch (2.54mm) protoboard or breadboard. This adapter has 2mm female sockets to plug the XPORT Direct / Direct+ device and standard 0.1 inch (2.54mm) spaced headers for interfacing with standard protoboards and breadboards.
a) 2mm female sockets to plug the XPORT Direct / Direct+ device
b) 0.1 inch (2.54mm) spaced header for breadboard or protoboard connectivity
c) pin 1,2 already wired to ground
XPORT Direct / Direct+ device not included.
Lantronix XPORT Direct / Direct+ Adapter
Lantronix XPORT Direct / Direct+ Adapter PCB
RequirementsLantronix XPORT direct / direct+, Soldering iron, solder and soldering skills.
Some items are non-returnable (semiconductors, microcontrollers, electronic kits).
