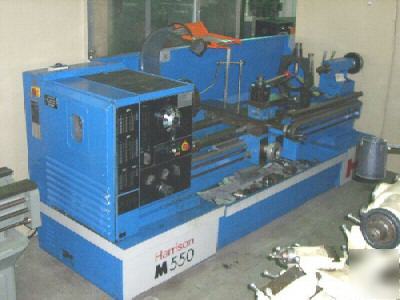

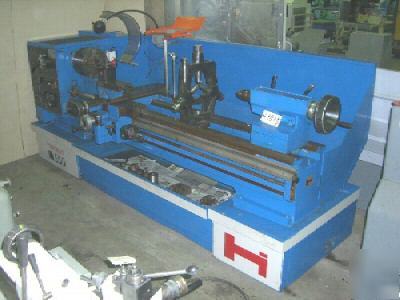

21"/ 32" X80" harrison engine lathe, no. M550GH (19818)
21"/32" x 80" cc, HARRISON, No. M550, Gap Bed, 1400 RPM, Inch/mm, 3.5" Hole, 97' Our stock number: 19818 Harrison Engine Lathe MODEL..................................M550GH
Harrison Engine Lathe SERIAL NUMBER..........................5M0097 Year: 1997
Harrison Engine Lathe GENERAL SPECIFICATIONS
Swing Over Bed.........................21-7/8"
Swing In Gap...........................32-3/4"
Swing Over Cross Slide.................14-1/2"
Distance Between Centers...............80"

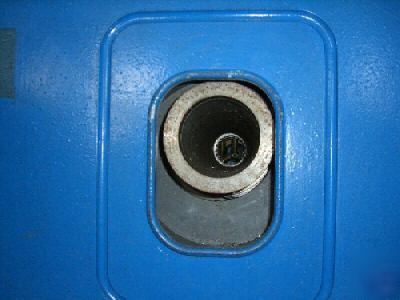

Spindle Hole...........................3-1/2"
Spindle Nose...........................D1-11 Camlock
Spindle Speeds.........................(16) 18 to 1400 RPM
Threads, Metric........................(78) 0.2 to 14mm
Threads, English.......................(79) 2 to 84 TPI
Threads, Module........................(47) 0.2 to 3.5 MOD
Threads, Diametral.....................(47) 8 to 72 D.P.
Feeds, Metric..........................(38) 0.04 to 2.84 mm/rev
Feeds, English.........................(38) 0.0016 to 0.0110 in/rev
Tailstock Quill Diameter...............3-3/4"
Tailstock Travel.......................7"
Tailstock Morse Taper..................No. 6
Harrison Engine Lathe EQUIPPED WITH
Instruction and Spare Parts Manual
NOTE: 2006 Replacement Price $41,000.00
Harrison Engine Lathe Approximate Weight.....................6300 Lbs.
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
**********PLEASE READ BELOW**********
**Skidding, crating, palletizing and/or packaging of any item are an additional cost and will be added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. **
**We will load on a flat bed, open truck or trailer free of charge. **
**Skids shown in pictures are not included with the item. **
If you want to purchase an item and have circumstances requiring the item to be picked up at a later date, please inform us before the item is purchased.
We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. (***)-745-6008
