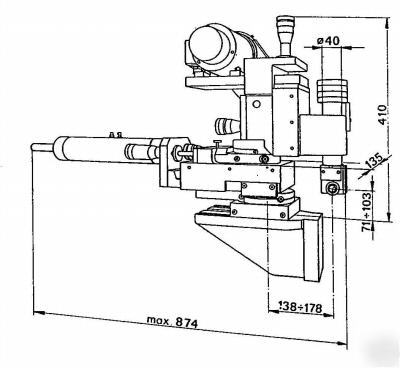

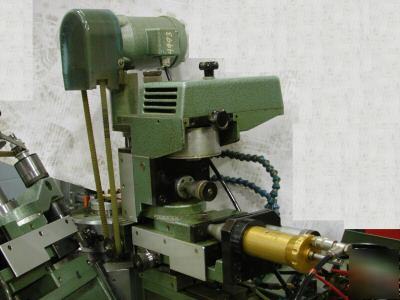

IMOBERDORF UNIT 05/16 DRILLING ATTACHMENT - ROTARY TRANSFER
longitudinal slide travel: 35mm (1.378")
normal from: 0-20mm (0 - .787")
double action from: 0-35mm (0 - 1.378")
work advance contin. adjustable
double action from: 0-20mm (0 - .787")
or from: 10-30mm (.393 - 1.181")
Cross Slide Stroke: 25mm (.984")
Total Travel of Vertical Head: 20mm (.787")
Rapid Advance: fix 10mm (.393")
Work Travel Adjustment from: 0-10mm (0 - .393")
Work advance contin. adjustable:
swivel range - detached unit: 180 degrees
- millling spindle: 180 degrees
with spindle Q1 dia 30: max dia 40mm (1.575")
with spindle Q2 dia 20: max dia 30mm (1.181")
On the Unit 05/16 optionally the following tools can be mounted:
1 holding-down device type 01 or 02
1 drilling and milling spindle type Q1 dia 30 max 9500 rpm
1 drilling and milling spindle type Q2 dia 20 max 10700 rpm
