#4U cleveland "dial-type" universal horiz mill #21452

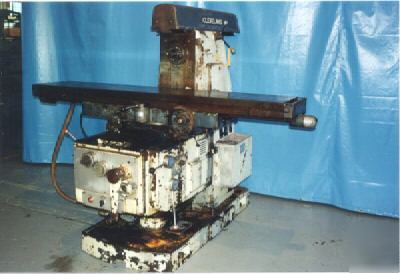

#4U CLEVELAND "DIAL-TYPE" UNIVERSAL HORIZONTAL MILL
Serial No 4.054, Model 4U, Series "DIAL-TYPE",
Universal Swiveling Table (45-Degree +/-)
Table Dimensions (Overall), W x L....... 16" x 90"
Table Working Surface, W x L............ 16" x 85"
Table Swivel, RH or LH.................. 45-DEGREES
Table Longitudinal Travel (X-Axis)...... 69"
Saddle In-Out Cross Travel (Z-Axis)..... 16"
Knee Vertical Travel (Y-Axis)........... 20"
Spindle-Center to Table-Top, Minimum.... 0"
Spindle-Center to Table-Top, Maximum.... 20"
Spindle Taper........................... #50 NSTD
(16) Spindle Speeds, Range.............. 30 to 1800 RPM
(16) Longitudinal and Cross Feeds....... 3/8 to 34 IPM
(16) Vertical Feeds, Range.............. 3/16 to 17 IPM
Power Rapid Traverse, Long & Cross...... 140 IPM
Power Rapid Traverse, Vertical.......... 70 IPM
Motor, Horsepower/RPM................... 15 HP/1740 RPM
Electrical System....................... 220-440/60
Weight, Approximately................... 10000 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $750.00
All machines/equipment subject to prior sale.
