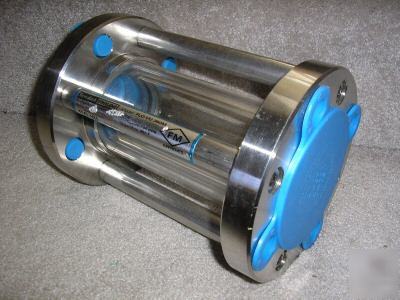

Sermatech ethylene flo-vu 360M sight indicator
Type 316 Stainless and Glass Wetted Surfaces The FLO-VU 360M is an un-lined version of the FLO-VU 360.
Since it is similar in design to the FLO-VU 360, it offers the same
high performance and rugged construction for applications
that are less corrosive or purity sensitive. The standard unit
is supplied with type 316 stainless steel flanges and PFA/Viton
' B' seals. Hastelloy'C' flanges are offered for more corrosive services and
Teflon PFA/Viton'B' seals are available for enhanced thermal
cycling performance. All FLO-VU sight glasses are designed for
services with operating temperatures up to 350°F.
Pressure Rating ........ 150 @ 350°F
Design Pressure ........225 @ 350°F
Temperature Range ..-20° to 350°F
Vacuum Rating ..........Full Vacuum
Flange Material .........316 St Steel
Glass Tube .................Borosilicate
Impact Shield ............Polycarbonate
Flange Liner ..............Teflon®PFA
Length ..................8" OAL
