Gigatronics 6082A 0.1- 2112 mhz rf signal gen/sweeper


Gigatronics 6082A 0.1- 2112 MHz RF Signal Gen/Sweeper

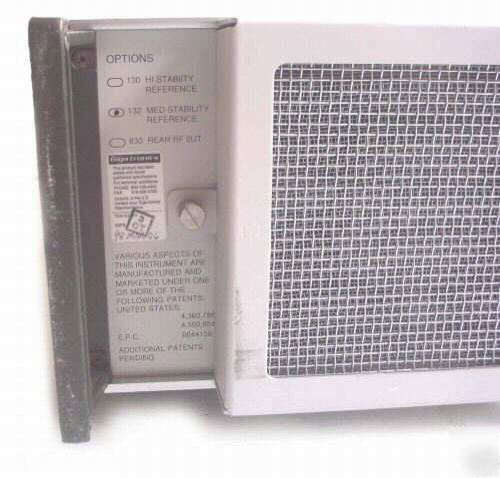

OPTION-132 Temprature Stability <+- 1 x 10E-7 (0-50C)

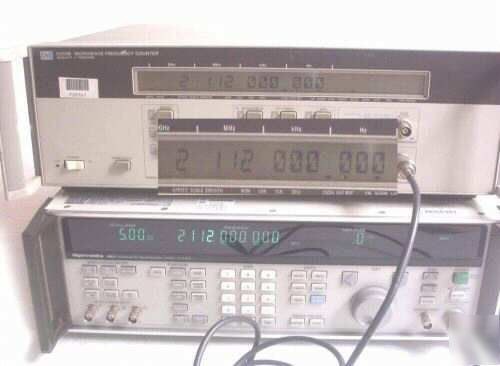

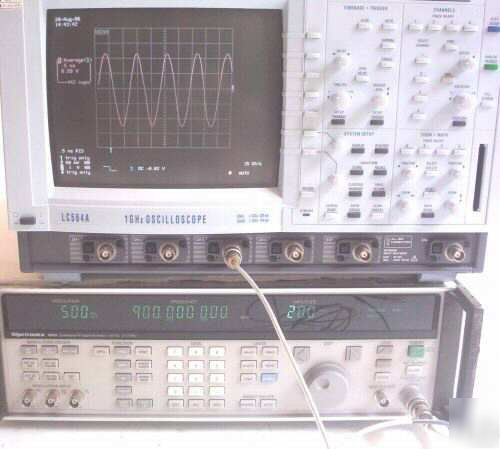

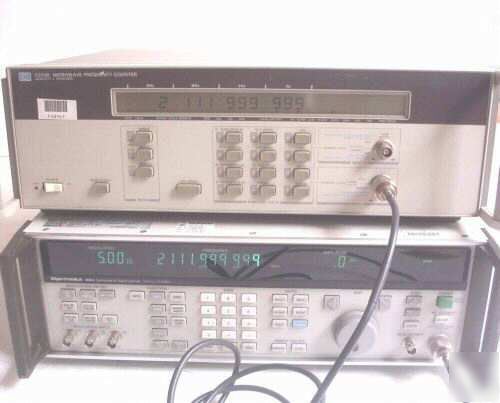

We don’t use the typical statements other sellers use, such as “Appears To Be Working” and “Right of Return”. Those statements are for sellers that are not confident with their equipment. We provide you with in depth pictures of the unit being tested. Electronic Equipment either work properly or they don’t, there is no gray area. Take a look at our pictures and make an informative decision. Don’t accept dark, meaningless pictures from your Test Equipment Supplier!

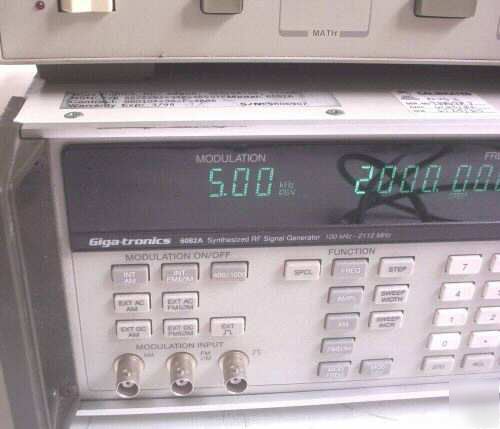

The 6082A Synthesized RF signal generator is fully programmable, precision, synthesized signal source, designed for applications that require good modulation, frequency and output level performance with excellent spectral purity. The 6082A is well suited for testing a wide variety of RF receivers, particularly off-channel radio testing.
-Frequency range in 1 Hz steps from 100KHz to 2112 MHz
-Display resolution 10 digits.
-Amplitude ranges from +16 to -140 dBm for RF below 1056 MHz and +13 to 140 dBm for above 1056 MHz.
-Amplitude units: dB, dBm, dBf, dBuv, dBmv, uV, mV, V and EMF.

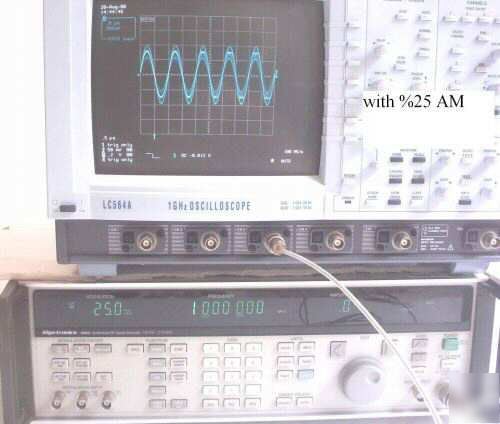

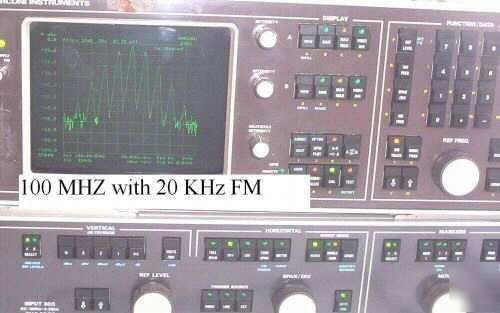

-Internal and External modulation: AM, FM, PHASE, and pulse.
-Internal 0.1 Hz to 200 KHz DDS modulation OSC that provides sine, square, triangular, and pulse waveforms.

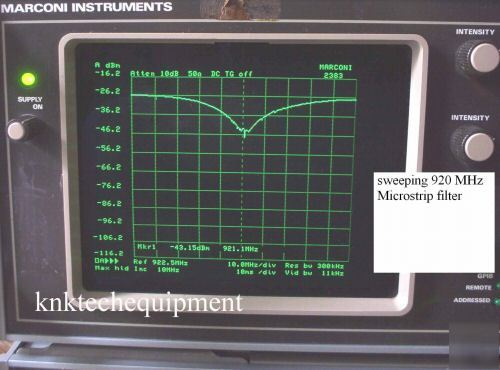

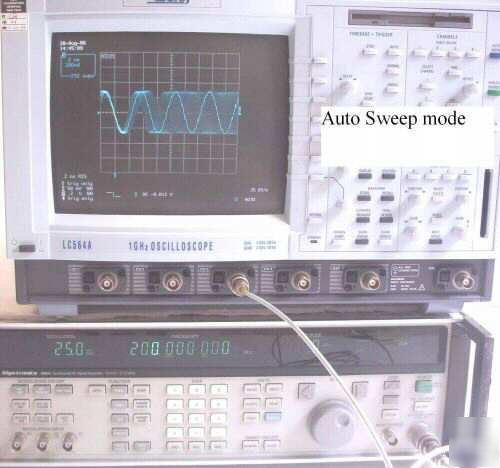

-Digital frequency sweep (Auto, Single, and Manual).
and digital amplitude sweep in linear or Log mode (Auto, Single, and Manual) .
-50 storable and recallable instrument state memory locations.
-Reverse-Power protection up to 25W from a 50 ohm source.
-Sweep output (AUX Connector).
-Power requirements: 100, 120,220,240 V.
- Operator, programming manual on CD "PDF" file.
Returns Will Only Be Accepted If The Item Arrives In A Defective Manner
