American metal wash gas fired washer


AMERICAN METAL WASH GAS FIRED WASHER
Serial # 88-306 New 1988 Model # 2000VD

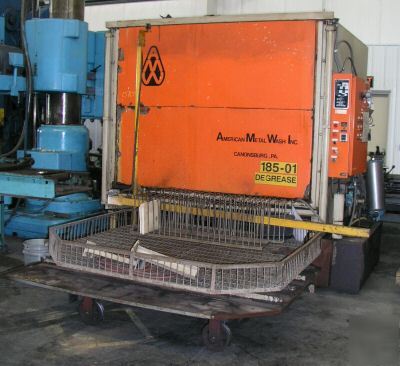

This is a cabinet style unit with revolving work basket that rolls in and out of the cabinet on steel wheels. During loading and unloading the basket sits on a hydraulic scissors lift table that moves back and forth to the washer opening.
Maximum Load Capacity: 6,000 Lbs.
Nominal Operating Temperature: 150 Degrees F
(1) Parts Basket Approx. 67" L-R x 67" F-B x 6" Deep
Hydraulic Lift Table to Support Basket
Air Operated Work Door - Door Opens Straight Up

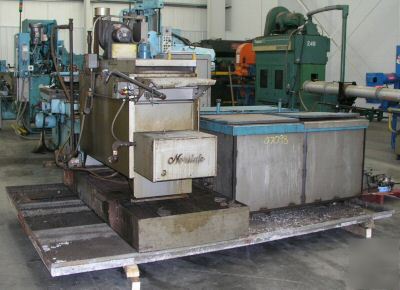

Nordale Fluid Evaporator, Model # 1000, Gas Fired
Wired for 3 Phase, 60 Cycle, 460 Volts
Machine: 127" L-R x 96" F-B x 100" H
Load/Unload Station: 72" L-R x 77" F-B x 29" H
Fluid Evaporator: 127" L-R x 96" F-B x 87" H
